Which size is right for me?

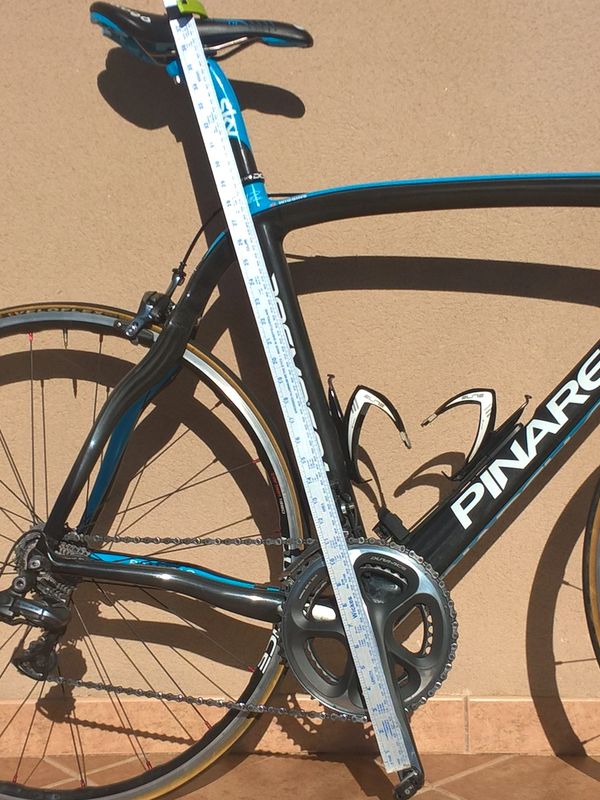

Step 1 - Saddle height (A)

Measure from the pedal to the top of the saddle.

Make sure to line up the cranks with seat tube, with the pedal at the bottom

Step 2 - Length (B)

Step 1 - Saddle height (A)

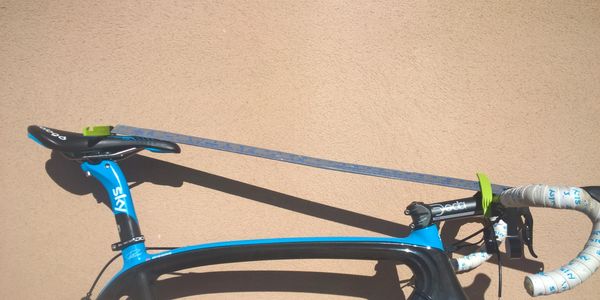

Hire bike Length measurement Bradley Wiggins 2011 Pinarello Dogma

Measure from the centre of the saddle (same place you measured the height to) to the back of the handlebars

Step 3 - Handlebar height (C)

Now that you have these 3 key measurements from your bike

Hire bike Handlebar height measurement on Bradley Wiggins 2011 Pinarello Dogma

Measure from the front wheel quick release straight up to the bottom of the handlebars

Now that you have these 3 key measurements from your bike

Check the maximum and minimum dimensions shown below and see which size fits you best

If your dimensions would fit on more than one size, I would choose the option with the LENGTH measurement closest to the middle of the range

REMEMBER to send me these measurements with your booking so I can have your rental bike set up as close as possible to your own road bike when I deliver it to you. We want your bicycle hire experience to be a good one!

Rental Bike Dimensions

Willier GTR Team - Mechanical or Di2 Gears

Full 46Ton Carbon fibre frame and forks. Shimano Ultegra R8000 mechanical or R8050 Di2 electronic groupset. 50/34 chainset and 11-28 cassette.

Extra Small (XS) (~48/50)

Min / Max Saddle Height - 75-90cm

Min / Max Length** - 56-66cm

Min / Max Handlebar Height^ - 50-54cm

Small (S) (~52)

Min / Max Saddle Height - 79-92cm

Min / Max Length** - 60-69cm

Min / Max Handlebar Height^ - 52-55cm

Medium (M) (~54)

Min / Max Saddle Height - 80-95cm

Min / Max Length** - 62-70cm

Min / Max Handlebar Height^ - 53.5-57cm

Large (L) (~56)

Min / Max Saddle Height - 88-97cm

Min / Max Length** - 64-74cm

Min / Max Handlebar Height^ - 55.5-58cm

Extra Large (XL) (~58/59)

Min / Max Saddle Height - 92-100cm

Min / Max Length** - 66-75cm

Min / Max Handlebar Height^ - 56.5-60cm

** as measured with; Min saddle height & 9cm stem / Max saddle height & 13cm stem

^ Handlebar height can be made around 2cm higher by turning the stem upside down

CBT ITALIA & Wilier Bicycle hire /rental in Mallorca from Martin in Majorca

Which size is right for me?

Step 1 - Saddle height (A)

Step 1 - Saddle height (A)

Step 1 - Saddle height (A)

Step 2 - Length (B)

Step 1 - Saddle height (A)

Step 1 - Saddle height (A)

Step 3 - Handlebar height (C)

Now that you have these 3 key measurements from your bike

Now that you have these 3 key measurements from your bike

Now that you have these 3 key measurements from your bike

Now that you have these 3 key measurements from your bike

Now that you have these 3 key measurements from your bike

Rental Bike Dimensions

Willier GTR Team - Mechanical or Di2 Gears

Extra Small (XS) (~48/50)

Small (S) (~52)

Medium (M) (~54)

Large (L) (~56)

Extra Large (XL) (~58/59)

Wilier ZERO 7

Large (L) (~56)

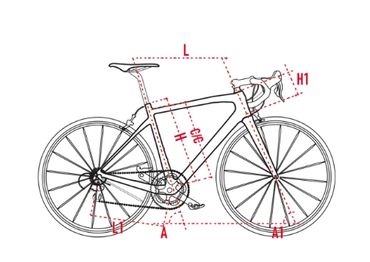

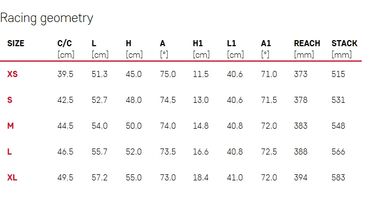

GTR Team geometry
